Hinges on right hand side

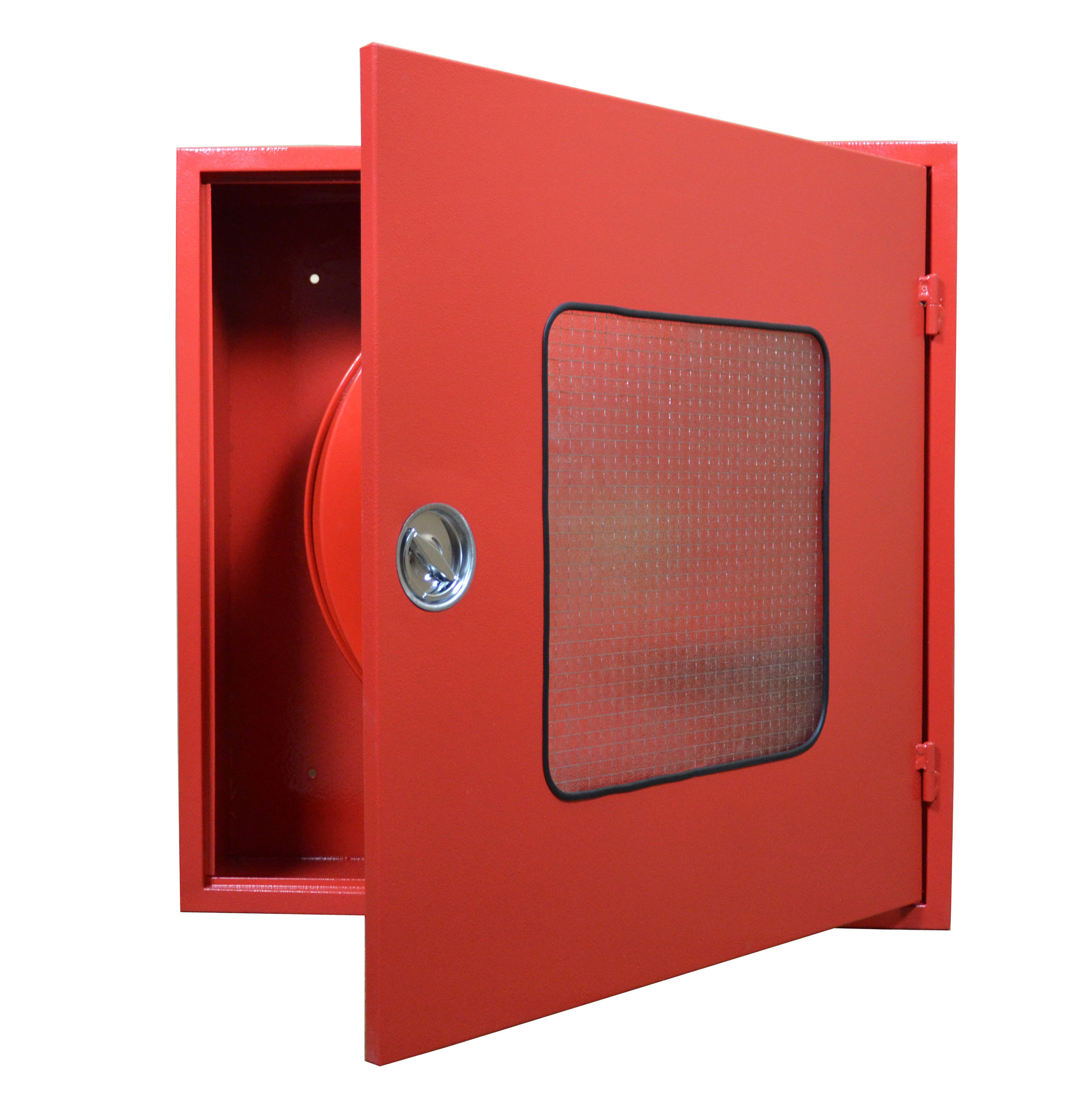

Hose Reel & Cabinet Powder Coated with RAL300 RED
Quality Cabinet Lock
Brass Waterway
Jet/Spray/Shut-off Nozzle
EN694 Approved Hose
Swing Arm
Hose guide allowing hose to be run out any direction
CE Approverd According to EN671
kiwa:0620-CPR-75946
Options
Cabinet in Color RAL9010 White
Cabinet Hinges on left hand side
Black Hose
Hose Reel in Stainless Steel Plates
Model Number | Orde Number | Disc Siz e(mm) | Hose (Diameter×Lengh) | Dimensions In (mm) | Packing Size (L×W×H)(mm) | |
| Φ25mm | Φ19mm | D×W×H | ||||
| SA-C2 | HR500-010-C2 | 500 | 20m | 680×680×230 | 690×240×690 | |
| SA-C2 | HR500-011-C2 | 500 | 25m | 680×680×285 | 690×295×690 | |
| SA-C2 | HR500-012-C2 | 500 | 30m | 680×680×285 | 690×295×690 | |
| SA-C2 | HR500-019-C2 | 600 | 20m | 780×780×260 | 790×270×790 | |
| SA-C2 | HR500-020-C2 | 600 | 25m | 780×780×260 | 790×240×790 | |
| SA-C2 | HR500-021-C2 | 600 | 30m | 780×780×285 | 790×295×790 | |
| SA-C2 | HR500-022-C2 | 600 | 20m | 780×780×230 | 790×240×790 | |
| SA-C2 | HR500-023-C2 | 600 | 25m | 780×780×230 | 790×240×790 | |
| SA-C2 | HR500-024-C2 | 600 | 30m | 780×780×260 | 790×270×790 | |
Model Number | Orde Number | Disc Siz e(mm) | Hose (Diameter×Lengh) | Dimensions In (mm) | Packing Size (L×W×H)(mm) | |
| Φ25mm | Φ19mm | D×W×H | ||||
| SA-C2 | HR500-010-C2 | 500 | 20m | 680×680×230 | 690×240×690 | |
| SA-C2 | HR500-011-C2 | 500 | 25m | 680×680×285 | 690×295×690 | |
| SA-C2 | HR500-012-C2 | 500 | 30m | 680×680×285 | 690×295×690 | |
| SA-C2 | HR500-019-C2 | 600 | 20m | 780×780×260 | 790×270×790 | |
| SA-C2 | HR500-020-C2 | 600 | 25m | 780×780×260 | 790×240×790 | |
| SA-C2 | HR500-021-C2 | 600 | 30m | 780×780×285 | 790×295×790 | |
| SA-C2 | HR500-022-C2 | 600 | 20m | 780×780×230 | 790×240×790 | |
| SA-C2 | HR500-023-C2 | 600 | 25m | 780×780×230 | 790×240×790 | |
| SA-C2 | HR500-024-C2 | 600 | 30m | 780×780×260 | 790×270×790 | |
