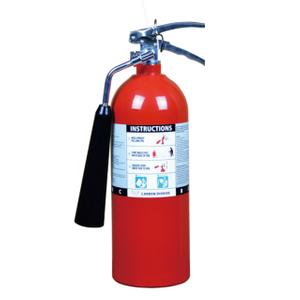

CO5LB/CO10LB/CO15LB/CO20LB
VICTORY
2L
0.2kg
Dry Chemiacl Powder Fire Extin
Model Number | CO5LB | CO10LB | CO15LB | CO20LB |
Capacity / lb (/kg) | 5(2.27) | 10(4.54) | 15(6.8) | 20(9.07) |
Cylinder Diameter / in (/mm) | 5.24(133) | 6.89(175) | 8(203) | |
Height / in (/mm) | 17.13(435) | 29.92(760) | 35.82(910) | 36.02(915) |
Width / in (/mm) | 8.07(205) | 11.42(290) | 12.40(315) | |
Discharge Time / s | 9 | 10 | 14 | 18 |
Fire Rating | 5-B:C | 10-B:C | 10-B:C | |
Extinguisher Weight / lb (/kg) | 12.92(5.86) | 25.88(11.74) | 30.56(13.86) | 46.30(21.00) |
Packing Size(L×W×H) / in (/mm) | 7.67×5.7×17.72(195×145×450) | 11.62×7.28×20.08(295×185×510) | 11.62×7.28×26.77(295×185×680) | 12.8×8.44×27.17(325×215×690) |
Discharge Range / ft (/m) | 4-8(1.2-2.4) | 4-8(1.2-2.4) | 4-8(1.2-2.4) | |
Operation Temperature / F (/C) | -22~120(-30~49) | -22~120(-30~49) | -22~120(-30~49) | |
UL list File Number | EX 27916 | EX 27916 | EX 27916 | |
Marine Type | / | B:C Size I | B:C Size II | / |
USCG Approval Number | / | 162.028 EX 27916 | / | |
* Transport Classification:Non-Flammable,Non-Toxic Gas. UN No.1044 Class 2.2
