A CO2 (carbon dioxide) extinguisher is one of the most common types of fire extinguishers used today. It is particularly effective for certain kinds of fires and is commonly found in homes, offices, industrial settings, and even in some specialized locations such as laboratories and server rooms. Understanding how to properly use a CO2 extinguisher can be life-saving in emergencies. This article will guide you through the process of using a CO2 extinguisher, from preparation to after-use procedures, ensuring you’re well-equipped to handle a fire emergency with confidence.
CO2 extinguishers are designed to combat electrical fires, flammable liquids, and some types of solid fires. Unlike water-based extinguishers, they work by displacing oxygen around the fire, effectively suffocating it. This characteristic makes CO2 extinguishers especially useful in environments where water or powder-based extinguishers could cause further damage, such as on electrical equipment, machinery, or sensitive documents. Because of its unique method of action and ability to leave no residue, CO2 extinguishers are ideal for environments where equipment could be damaged by water or powder-based extinguishers.
CO2 extinguishers work quickly, but it is essential to know the correct procedure to use them efficiently. In this guide, we will walk through each important step, from preparation to proper use, along with safety measures, and aftercare to ensure the fire is entirely extinguished and the equipment is ready for future use.
A CO2 extinguisher is a type of fire extinguisher that uses carbon dioxide to put out fires. The CO2 is stored in liquid form under high pressure inside a cylinder. When activated, the liquid CO2 is released and turns into a gas, rapidly displacing the oxygen surrounding the fire, which causes the fire to suffocate.
This displacement of oxygen is crucial because oxygen is one of the three elements required for combustion—fuel, heat, and oxygen. By removing one of these elements, the fire loses its ability to sustain itself. CO2 is particularly effective in environments where using water could be hazardous, such as in electrical fires, flammable liquids, and even some chemical fires.

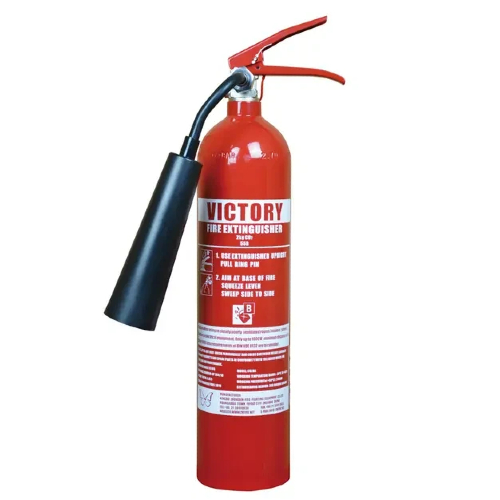

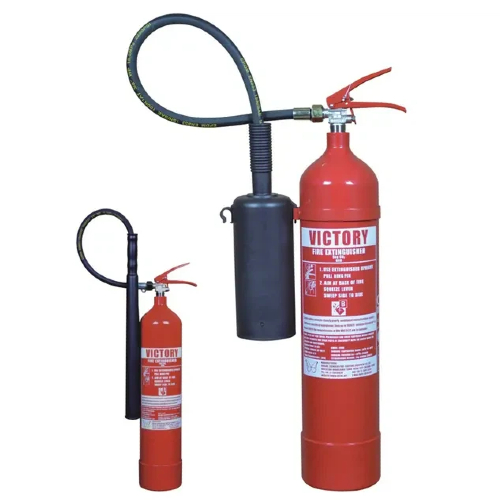

A typical CO2 extinguisher consists of the following components:
Cylinder: The main body of the extinguisher, which contains the liquid CO2. It is built to withstand the pressure needed to store CO2 in its liquid state.
Handle: The part used to carry and operate the extinguisher. It is typically ergonomically designed for a firm grip.
Nozzle: The outlet where the CO2 is discharged. Some models may have a horn-like nozzle designed to direct the CO2 in a controlled manner, making it easier to target the fire.
Safety Pin: A pin that keeps the extinguisher from being activated accidentally. It prevents the handle from being squeezed until it is removed.
Pressure Gauge: Some models have a gauge to show whether the extinguisher is fully charged or needs to be refilled. This is typically located at the top of the cylinder.
CO2 extinguishers work by releasing CO2 gas, which is heavier than air and displaces oxygen. Since oxygen is necessary for combustion, removing it from the fire reduces the chances of it continuing to burn. Additionally, the rapid expansion of CO2 gas from its liquid form also causes a cooling effect, lowering the temperature of the fire and making it less likely to reignite.
Unlike water-based extinguishers, CO2 extinguishers leave no residue behind, making them ideal for use on electrical equipment. Their non-conductivity ensures that the fire is put out safely without posing an electrical shock hazard to the user.
Before using the extinguisher, ensure that the pressure gauge is in the "full" or "operational" range. If the gauge shows "empty" or outside the green zone, the extinguisher may need to be recharged or replaced. It's crucial to perform this check regularly to ensure the extinguisher is always ready for use.
In addition to checking the pressure, also visually inspect the extinguisher for any visible signs of damage such as dents or cracks. A damaged extinguisher should be replaced immediately, as it could be hazardous to use during an emergency.
Pressure Gauge Level | Meaning | Action Needed |
Green Zone (Normal) | Full charge | Ready to use |
Red Zone (Low) | Low charge or empty | Refill or replace |
No Gauge | No visible gauge | Inspect and replace if necessary |
To activate the extinguisher, remove the safety pin. The pin is typically located near the handle, and it prevents accidental discharge. Pulling the pin ensures the trigger mechanism is ready for use. In some models, the safety pin may also have a tamper seal, which should be checked to ensure the extinguisher hasn’t been used improperly before.
It’s important to remember that the safety pin cannot be replaced once it has been removed, so always handle it carefully.
When preparing to use the extinguisher, stand at a safe distance from the fire. Generally, you should aim to be about 3-6 feet away from the flames. This distance allows for effective discharge while ensuring your safety. At the same time, you’ll need to be able to reach the base of the fire to extinguish it efficiently.
Standing too far away might reduce the efficacy of the CO2, while being too close could put you at risk of exposure to smoke or the fire itself. Make sure you have a clear escape route and remain calm throughout the process.
Now that you are prepared, let’s go step by step through the process of using a CO2 extinguisher:
Point the nozzle or horn of the CO2 extinguisher at the base of the fire. The base is where the fuel source is located, and this is where the extinguishing action should be focused. Aiming at the flames will not be as effective, as the fire will continue to burn at its source.
It’s important to maintain a steady hand and ensure the nozzle is always directed towards the area that is burning, rather than the fire itself. The CO2 will expand outward and lower the oxygen levels around the base of the fire.
Once you are aiming at the base of the fire, press the handle of the extinguisher. This action will release the CO2. Hold the handle steady to keep the gas flowing. It’s important not to discharge the extinguisher in short bursts, as the CO2 needs to cover the fire's base for it to extinguish properly.
By applying consistent pressure, you allow the CO2 to flow continuously, which ensures that enough oxygen is displaced for the fire to go out.
To ensure the fire is completely extinguished, use a sweeping motion with the nozzle. Move it from side to side, directing the CO2 at the base of the fire. This sweeping technique ensures that the fire is smothered evenly and that no part of it remains ignited. Always keep the nozzle aimed at the base of the fire to prevent reignition.
This method helps ensure that all areas of the fire are targeted. If you focus on one spot too long, the fire may have a chance to spread or reignite.
After using the CO2 extinguisher, stay in the area and monitor the fire. CO2 can effectively put out the flames, but you should keep an eye on the fire to make sure it doesn't reignite. If necessary, use the extinguisher again to cover the area that may have been missed.
Since CO2 works by displacing oxygen, the fire can sometimes reignite if it wasn’t completely suffocated. Check the area thoroughly, and if you notice any signs of smoke or flames reappearing, apply more CO2 to ensure complete suppression.
Once the fire is completely out, assess the condition of the CO2 extinguisher. If you have used it, it will need to be refilled or replaced. CO2 extinguishers cannot be reused until they have been recharged.
For safety, if you're in a public or industrial space, notify the appropriate personnel that the extinguisher has been used so it can be refilled or replaced immediately.
Action | Description |
Refill | If the extinguisher has been partially or fully used, it must be recharged before it can be used again. |
Replace | In some cases, especially if the extinguisher has been significantly discharged, it may need to be replaced with a new one. |
Proper maintenance ensures that your CO2 extinguisher is always ready for use in an emergency. Here are some tips:
Inspect your CO2 extinguisher regularly to ensure that it is in good working condition. Check for any visible damage to the cylinder or nozzle, and confirm that the safety pin is properly in place. Make sure the pressure gauge reads in the green zone.
Additionally, check for any dust or dirt on the nozzle or cylinder that could impede the extinguisher’s effectiveness. If necessary, clean the extinguisher carefully to maintain its functionality.
It is recommended to have your CO2 extinguisher serviced by a professional every 1-2 years. During servicing, the extinguisher is checked for leaks, pressure integrity, and overall functionality. A professional will also ensure that the extinguisher is recharged with the proper amount of CO2.
In addition, servicing ensures that the extinguisher is not expired and remains compliant with local regulations regarding fire safety.
Knowing how to properly use a CO2 extinguisher is crucial for ensuring safety in various environments, particularly in places where electrical equipment or flammable liquids are present. By following the correct steps for preparation, operation, and aftercare, you can effectively extinguish fires and reduce harm to both people and property.
At NingBo ZhengXin Fire fighting Equipment Co., Ltd., we emphasize the importance of fire safety and provide high-quality CO2 extinguishers designed for optimal performance. To ensure your safety in any fire emergency, it’s essential to remain calm, know the locations of your extinguishers, and practice using them when possible. Regular maintenance and readiness are key to preventing potential hazards.
For more information on our CO2 extinguishers and other fire safety equipment, we invite you to reach out to us. Our team is dedicated to providing you with reliable fire protection solutions tailored to your needs. Whether you're looking for advice, product recommendations, or service support, we are here to assist you in ensuring the highest safety standards for your premises.
Yes, CO2 extinguishers are ideal for electrical fires. Since CO2 is non-conductive, it won’t cause any risk of electrical shock when used on electrical equipment.
First, check the pressure gauge to ensure that the extinguisher is not empty. If the pressure is low, the extinguisher will need to be refilled. If it still doesn’t work after being refilled, replace it.
Yes, CO2 extinguishers are effective on flammable liquid fires, as they rapidly remove oxygen from the area, which prevents the fire from spreading.
It is recommended to have your CO2 extinguisher professionally serviced every 1-2 years to ensure it remains in proper working condition.
If the fire persists after using one extinguisher, leave the area immediately and call emergency services. You may use another extinguisher if available, but if the fire is large, evacuating and getting help is the safest option.
