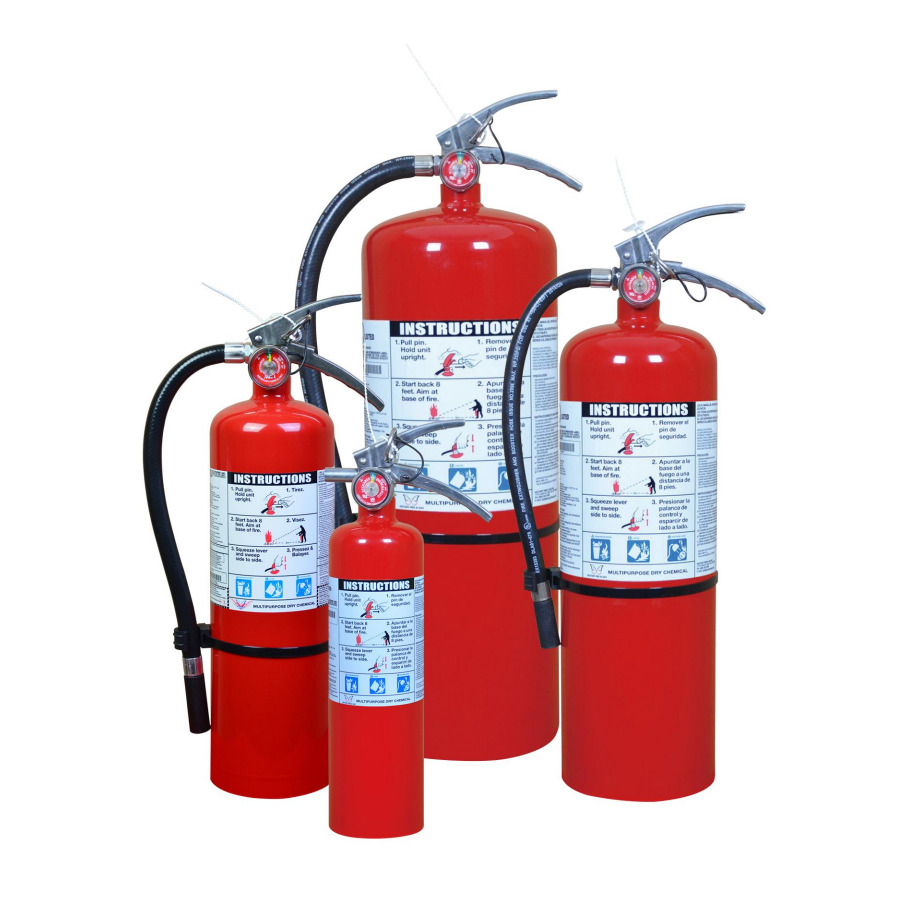

ABC DRY CHEMICAL

Capacity(lb/kg)

2.5(1.13)

5(2.27)

10.5(4.76)

20(9.07)

Cylinder Diameter(in/mm)

3.45(85)

4.33(110)

5.51(140)

7.16(182)

Height(in/mm)

14.37(365)

17.32(440)

20.16(512)

23.62(600)

Width(in/mm)

6.102(155)

8.9(226)

9.21(234)

10.63(270)

Discharge Time(s)

9

14

22

23

Fire Rating

1-A:10-B:C

3-A:40-B:C

4-A:60-B:C

6-A:80-B:C

Extinguisher Weight(lb/kg)

5.69(2.58)

9.943(4.51)

17.97(8.15)

32.606(14.79)

Packing Size(L×W×H)(in/mm)

6.30×4.13×14.96(160×105×380)

7.48×5.32×18.11(190×135×460)

7.09×5.91×20.87(180×150×530)

8.27×7.48×24.41(210×190×620)

Working Pressure psi/bar)

195(13.44)

195(13.44)

195(13.44)

195(13.44)

Operation Temperature(F/C)

-40~120

-40~120

-40~120

-40~120

UL list File Number

EX 26837

EX 26837

EX 26837

EX 26837

Marine Type

B:C Size I

A Size II B:C Size I

A Size II B:C Size II

A Size II B:C Size III

USCG Approval Number

162.028 EX 26837

162.028 EX 26837

162.028 EX 26837

162.028 EX 26837
