2L
0.2kg

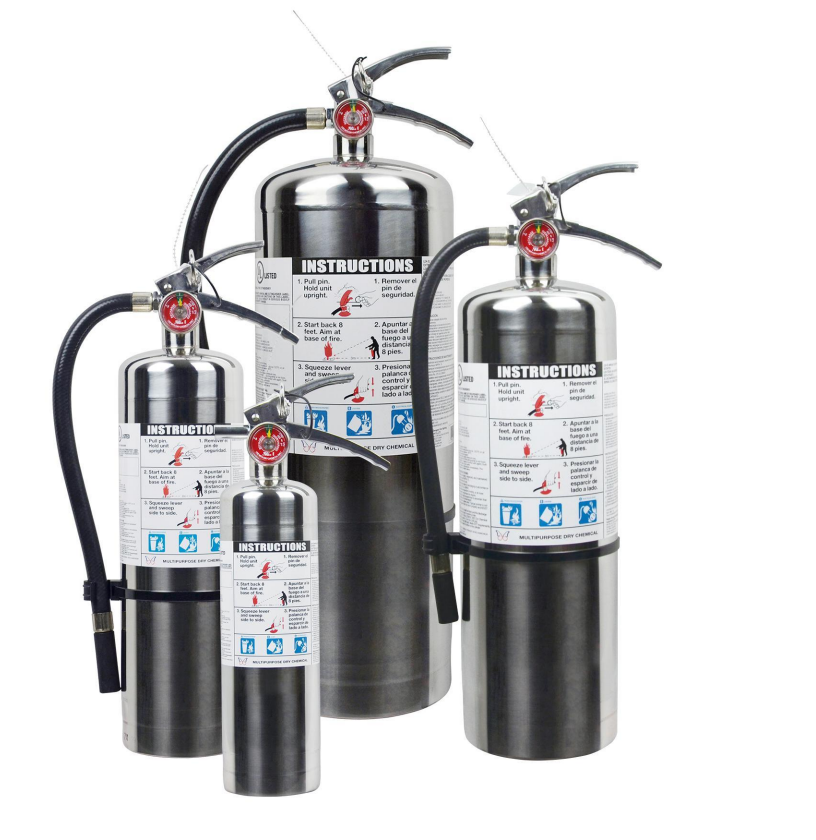

Dry Chemiacl Powder Fire Extin
Model Number | PD2.5LB-S | PD5LB-HS | PD10LB-S | PD20LB-S |
Capacity(lb/kg) | 2.5(1.13) | 5(2.27) | 10.5(4.76) | 20(9.07) |
Cylinder Diameter(in/mm) | 3.45(85) | 4.33(110) | 5.51(140) | 7.16(182) |
Height(in/mm) | 14.17(360) | 17.12(435) | 19.96(507) | 23.22(590) |
Width(in/mm) | 6.102(155) | 8.9(226) | 9.21(234) | 10.63(270) |
Discharge Time(s) | 9 | 14 | 22 | 23 |
Fire Rating | 1-A:10-B:C | 3-A:40-B:C | 4-A:60-B:C | 6-A:80-B:C |
Extinguisher Weight(lb/kg) | 5.36(2.43) | 9.79(4.44) | 18.94(8.59) | 33.58(15.23) |
Packing Size(L×W×H)(in/mm) | 6.30×4.13×14.76(160×105×375) | 7.48×5.32×17.91(190×135×455) | 7.09×5.91×20.67(180×150×525) | 8.27×7.48×24.01(210×190×610) |
Working Pressure psi/bar) | 195(13.44) | 195(13.44) | 195(13.44) | 195(13.44) |
Operation Temperature ( F/C) | -40~120 | -40 ~ 120 | -40 ~ 120 | -40 ~ 120 |
UL list File Number | EX 26837 | EX 26837 | EX 26837 | EX 26837 |
Marine Type | / | / | / | / |
USCG Approval Number | / | / | / | / |
* Transport Classification:Non-Flammable,Non-Toxic Gas. UN No.1044 Class 2.2
