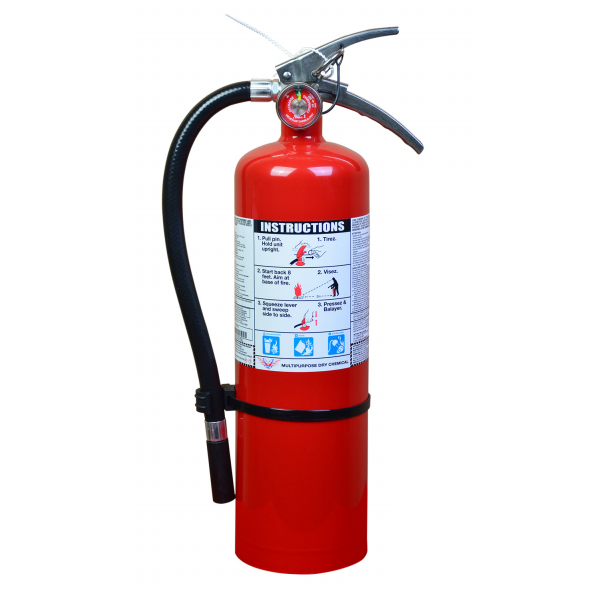

PD5LB-ALH
VICTORY
2L
0.2kg
Dry Chemiacl Powder Fire Extin
| Model Number | PD5LB-ALH |
| Capacity(lb/kg) | 5(2.27) |
| Cylinder Diameter(in/mm) | 4.33(110) |
| Height(in/mm) | 17.32(440) |
| Width(in/mm) | 8.9(226) |
| Discharge Time(s) | 14 |
| Fire Rating | 3-A:40-B:C |
| Extinguisher Weight(lb/kg) | 9.943(4.51) |
| Packing Size(L×W×H)(in/mm) | 7.48×5.32×18.11(190×135×460) |
| Working Pressure psi/bar) | 195(13.44) |
| Operation Temperature(F/C) | -40~120(-40~49) |
| UL list File Number | EX 26837 |
| USCG Approval Number | 162.028 EX 26837 |
* Transport Classification:Non-Flammable,Non-Toxic Gas. UN No.1044 Class 2.2
