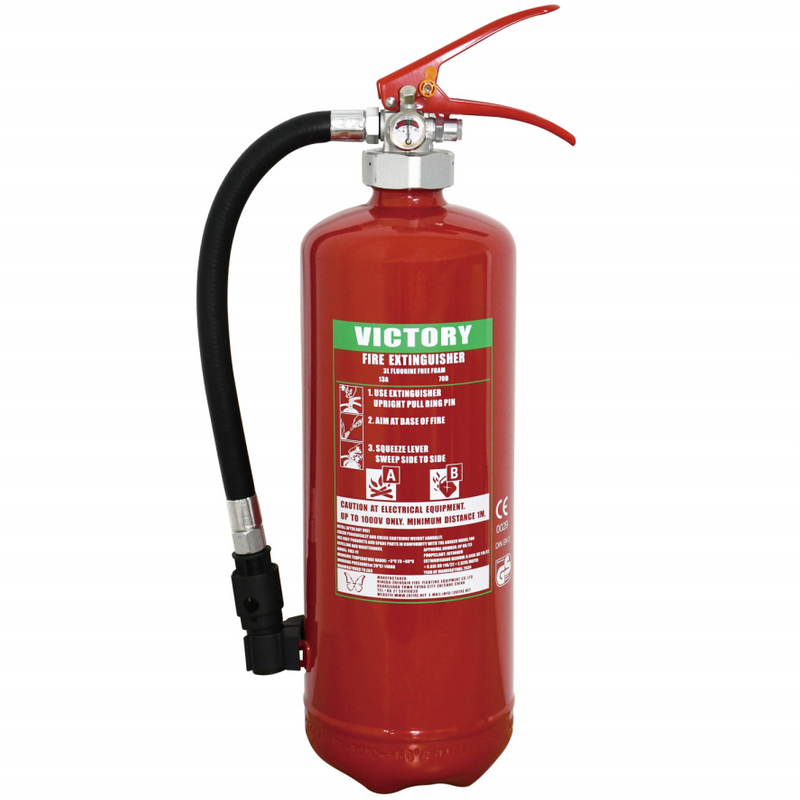

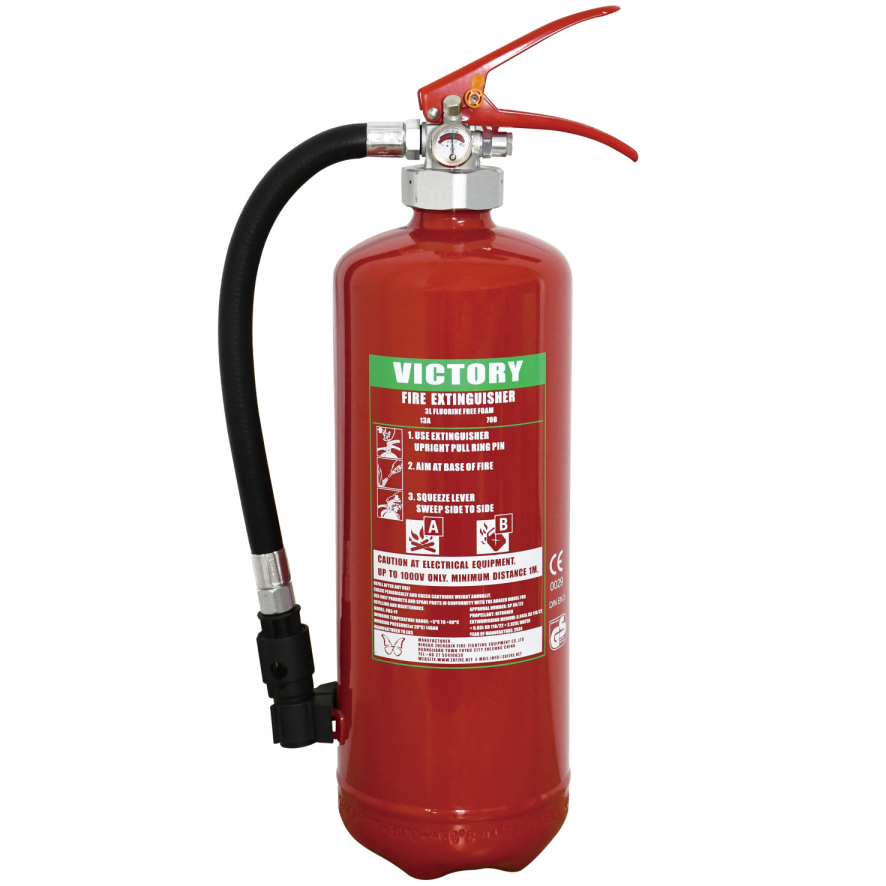

The 3L Fluorine-Free Foam Solution is a professional store-pressure fire extinguisher engineered to rapidly suppress Class A (solid combustibles) and Class B (flammable liquids) fires. Its core value lies in balancing efficient fire suppression with environmental protection, making it a reliable choice for both emergency response and daily safety preparedness.
With a 3L nominal capacity and a total weight of 5.5kg, this extinguisher features a compact design (packing size: 150×140×480mm) that fits in limited spaces while delivering a fire rating of 13A/70B. The store-pressure mechanism operates at 14bar working pressure, ensuring instant activation without external power or pressure sources, critical for minimizing fire spread.
Fluorine-Free Formulation: Contains no fluoride compounds, eliminating soil and water pollution after use, aligning with global green fire safety standards.
Non-Toxic & Harmless: The foam solution is non-irritating to humans and animals, safe for use in residential areas, food-processing plants, and eco-sensitive zones.
Stable Pressure Retention: Equipped with a CE-approved aluminum valve, it maintains pressure for long-term storage, validated by 100% helium leak detection.
Wide Temperature Adaptability: Functions seamlessly between +5℃ to +60℃, suitable for indoor and semi-outdoor environments like garages and warehouses.
Multi-Standard Approval: Complies with ISO9001, CE, DIN EN3, and GS standards, ensuring consistent quality and global market access.
Durable Structure: The cylinder undergoes phosphated treatment and powder coating, paired with a plastic lining, for exceptional corrosion resistance.
Model Number | FM3-FF(M45) |
Capacity / L | 3 |
Cylinder Diameter / mm | Φ130 |
Fire Rating | 13A/70B |
Approval Number | SP 85/23 |
Extinguisher Weight /kg | 5.5 |
Packing Size(L×W×H) /mm | 150×140×480 |
Working Pressure | 14bar |
Test Pressure | 30bar |
Operation Temperature | +5℃ - +60℃ |
* Transport Classification:Non-Flammable,Non-Toxic Gas.
UN No.1044 Class 2.2
Cylinder Body: Φ130mm seamless plastic-lined cylinder with a phosphated and powder-coated exterior, striking a balance between strength and lightness.
Valve System: CE-approved aluminum valve with a precision pressure gauge, enabling real-time pressure monitoring and smooth operation.
Discharge Assembly: A fan-shaped foam nozzle designed to deliver uniform, dense foam, targeting the fire root for rapid smothering.
One-Piece Molding: The cylinder is formed via advanced molding technology to eliminate leakage points, tested at 30bar pressure for safety.
Sealing Technology: Food-grade rubber gaskets are used at all connections, ensuring long-term pressure retention and leak-proof performance.
Commercial Spaces: Shopping malls, office buildings, and hotels—ideal for fires from furniture, carpets, or kitchen grease.
Residential Zones: Apartments, villas, and living rooms—compact enough to store in utility closets, ready for electrical appliance or candle fires.
Small Workshops: Woodworking, printing, and painting facilities—effective against Class A and B fires from materials and solvents.
Transportation Hubs: Parking lots, bus stations, and small warehouses—supports quick response to vehicle or package fires.
Store vertically in a cool, dry place, away from direct sunlight and heat sources (e.g., heaters, stoves).
Maintain a minimum 1m clearance around the extinguisher to ensure unobstructed access during emergencies.
Pull out the safety pin to unlock the valve.
Hold the nozzle 1-2 meters away from the fire (minimum distance for electrical equipment up to 100V).
Aim directly at the base of the fire, squeeze the lever, and sweep the nozzle side to side for full coverage.
Check the pressure gauge monthly—ensure the needle stays in the green zone; recharge if under-pressure.
Replace the foam solution every 2 years, even if unused, to maintain effectiveness.
Clean the nozzle with water after each use to prevent clogging.
