Dry Chemiacl Powder Fire Extin
The 9KG Store Pressure Automatic Fire Extinguisher (Model: PD9-AT/PD12-AT) is a heavy-duty fire safety device centered on Dry Chemical Powder technology. With a 9KG agent capacity and store-pressure design, it enables rapid automatic activation to control fires, meeting the fire suppression needs of medium to large spaces. This extinguisher adheres to international safety standards, making it a reliable choice for industrial and commercial fire prevention.

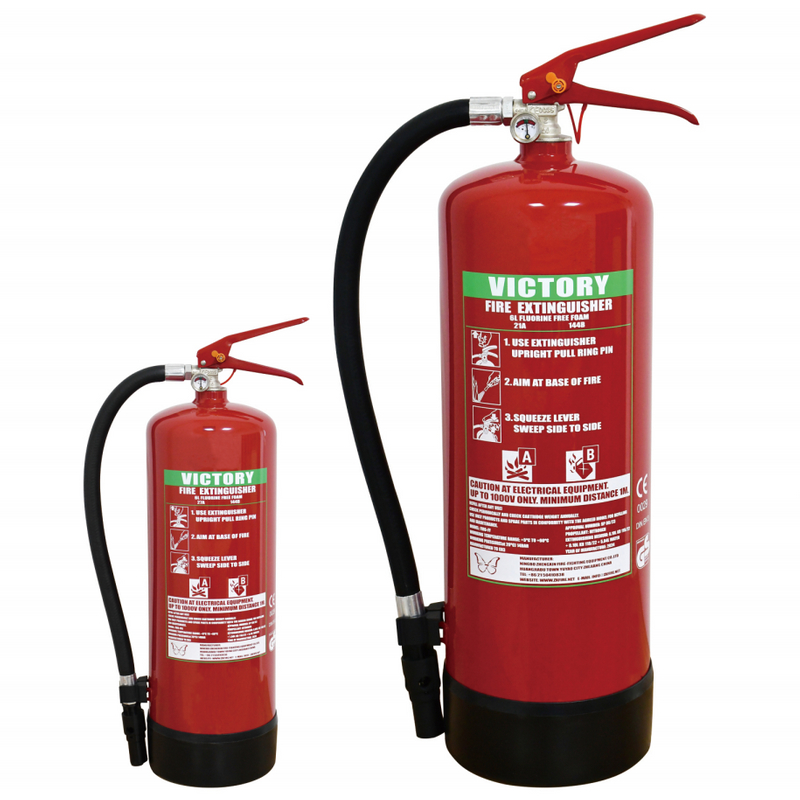

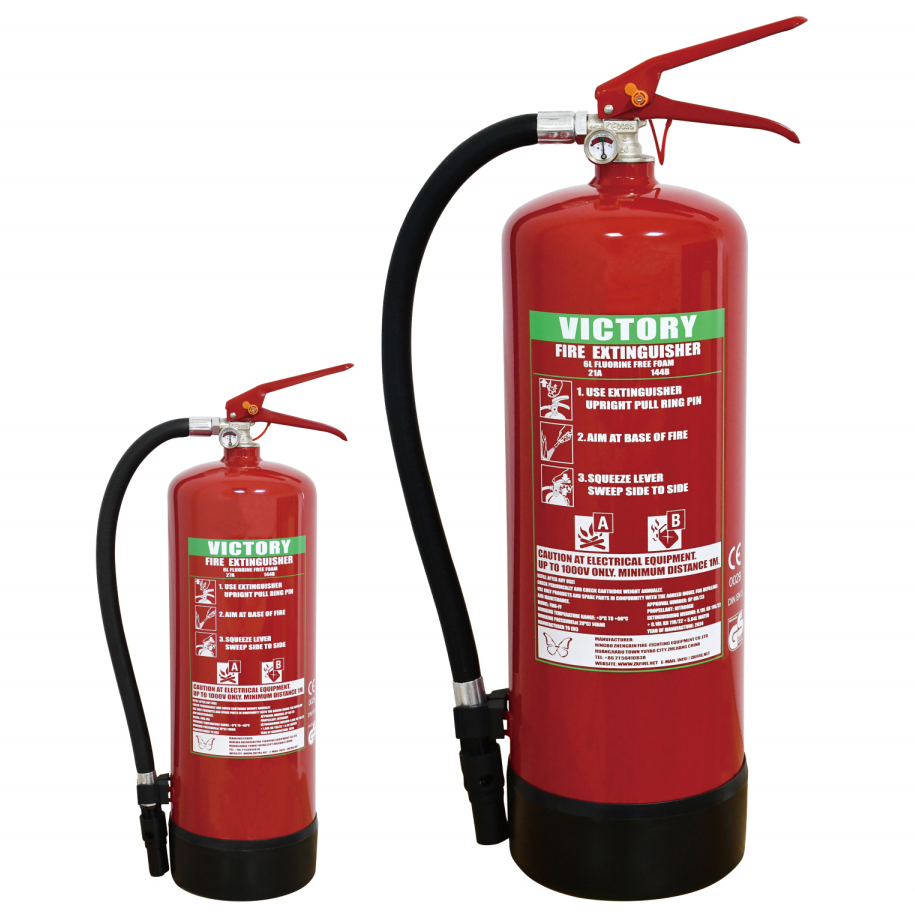

Model Number | FM6-FF(M30) | FM6-FFA(M30) |
Capacity / L | 6 | 6 |
Cylinder Diameter / mm | φ162 | φ162 |
Fire Rating | 21A/144B | 27A/144B |
Approval Number | SP 86/23 | SP 88/23 |
Extinguisher Weight /kg | 10 | 10 |
Packing Size(L×W×H) /mm | 175×175×570 | 175×175×570 |
Working Pressure | 14bar | 14bar |
Test Pressure | 30bar | 30bar |
Operation Temperature | +5℃ - +60℃ | +5℃ - +60℃ |
* Transport Classification:Non-Flammable,Non-Toxic Gas.
UN No.1044 Class 2.2
Suitable for Class A/B/C Fires: Effectively suppresses fires from solid materials (Class A), flammable liquids (Class B), and electrical equipment (Class C), covering most common fire hazards.
Automatic Sprinkler Valve: Equipped with an Automatic Sprinkler Valve (customizable temperature bulbs available), which triggers automatically when ambient temperature rises to the set threshold, no manual operation needed.
CE Approved Cylinder: The pressure cylinder holds CE certification, ensuring compliance with European safety norms for pressure-bearing devices.
DIN EN615 Dry Chemical Powder: Filled with high-performance Dry Chemical Powder that meets DIN EN615 Standard, ensuring efficient fire knockdown and low re-ignition risk.
100% Helium Leak Detected: Undergoes strict 100% Helium Leak Detected testing to eliminate gas leakage, guaranteeing long-term reliability.
ISO9001 Quality Assurance: Produced under the ISO9001 Quality System, ensuring consistent manufacturing quality and stable product performance.
Phosphated & Powder Coated Cylinder: The cylinder surface undergoes phosphated treatment and powder coating, enhancing corrosion resistance and durability, suitable for harsh industrial environments.
Store-Pressure Mechanism: Adopts a pre-pressurized store-pressure structure, enabling instant agent discharge once activated, reducing fire response time.
Precision Valve Assembly: The valve system is calibrated for stable pressure control, matching the Automatic Sprinkler Valve to ensure synchronized activation and uniform powder distribution.
Ideal for spaces with high fire risks, including:
Industrial workshops: Protects manufacturing areas with flammable materials or electrical machinery.
Flammable liquid warehouses: Addresses Class B fire hazards from oils, solvents, or fuels.
Commercial buildings: Safeguards malls, office towers, and exhibition halls against Class A/C fires.
Logistics hubs: Secures storage zones with mixed fire risks, ensuring broad coverage.
Install upright on a stable bracket, avoiding heat sources (e.g., boilers, heaters) or moisture-prone areas.
Ensure the Automatic Sprinkler Valve is unobstructed to allow smooth powder discharge.
Confirm the installation environment stays within -30℃ to +60℃ (optimal temperature range for performance).
Check the pressure gauge monthly to ensure it stays in the normal range.
Conduct annual professional inspections, including re-verifying 100% Helium Leak Detected integrity.
For manual emergency use: Pull the safety pin, aim at the fire base, squeeze the lever, and sweep horizontally.
