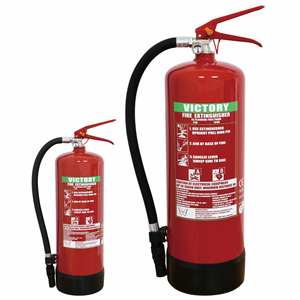

The 6L Store Pressure Fluorine-Free Foam Fire Extinguisher (Model: FM6-FF(M30)/FM6-FFA(M30)) is an eco-friendly fire safety solution powered by Fluorine-Free Foam Solution. With a 6L capacity, it uses store-pressure technology to deliver targeted foam discharge, suppressing Class A/B fires while minimizing environmental impact. It holds CE, DIN EN3, and GS certifications, suitable for eco-sensitive and safety-focused environments.
Model Number | FM6-FF(M45) | FM6-FFA(M45) |
Capacity / L | 6 | 6 |
Cylinder Diameter / mm | Φ162 | Φ162 |
Fire Rating | 21A/144B | 27A/144B |
Approval Number | SP 86/23 | SP 88/23 |
Extinguisher Weight /kg | 10 | 10 |
Packing Size(L×W×H) /mm | 175×175×590 | 175×175×590 |
Working Pressure | 14bar | 14bar |
Test Pressure | 30bar | 30bar |
Operation Temperature | +5℃ - +60℃ | +5℃ - +60℃ |
* Transport Classification:Non-Flammable,Non-Toxic Gas.
UN No.1044 Class 2.2
Class A/B Fire Suppression: Specializes in fires from solid combustibles (Class A, e.g., wood, paper) and flammable liquids (Class B, e.g., gasoline), with fire ratings of 21A/144B (FM6-FF(M30)) and 27A/144B (FM6-FFA(M30)).
Fluoride-Free Foam Solution: Uses Fluoride-Free Foam Solution to avoid ozone damage and soil/water pollution, aligning with global eco standards.
CE Approved Brass/Aluminum Valve: Equipped with CE Approved Brass/Aluminum Valve for corrosion resistance and precise pressure control, ensuring long-term stability.
Plastic Lining Cylinder: The cylinder has a Plastic Lining and CE certification, preventing chemical reactions between foam and metal, extending service life.
100% Helium Leak Detected: Undergoes 100% Helium Leak Detected testing to prevent gas leakage, ensuring emergency reliability.
ISO9001 Compliance: Produced under the ISO9001 Quality System, guaranteeing consistent manufacturing and safety performance.
Anti-Corrosion Cylinder: The outer cylinder is phosphated and powder-coated for rust resistance, suitable for humid areas (e.g., kitchens).
Plastic Lining Layer: The internal Plastic Lining isolates foam from the metal cylinder, maintaining foam effectiveness and cylinder integrity.
Pressure Optimization: Designed with 14bar Working Pressure and 30bar Test Pressure, ensuring foam is discharged at the ideal velocity to smother flames.
Perfect for environments requiring eco-friendliness and Class A/B fire protection, such as:
Commercial kitchens/hotels: Suppresses oil/grease fires (Class B) and solid fuel fires (Class A) without toxic residue.
Food processing plants: Protects production areas with flammable oils, complying with food safety rules.
Eco-sensitive areas: Used in parks, water treatment facilities, or eco-resorts where fluoride-based foams are banned.
Schools/retail stores: Safeguards public spaces with Class A fire risks (paper, textiles) and minimal environmental impact.
Mount upright on a wall bracket (1.5m height) in accessible areas, avoiding sunlight or temperatures outside +5℃ to +60℃.
Ensure the valve and hose are unobstructed for smooth foam flow.
Check the Plastic Lining for cracks during installation to prevent leakage.
Pull the ring pin (remove the safety seal first) to unlock the extinguisher.
Aim at the fire base (not flames) to target the fire source directly.
Squeeze the lever and sweep the hose side to side, covering the entire fire until extinguished.
After use, refill with Fluoride-Free Foam Solution and recheck 14bar Working Pressure before reinstallation.
